Containerised Substations

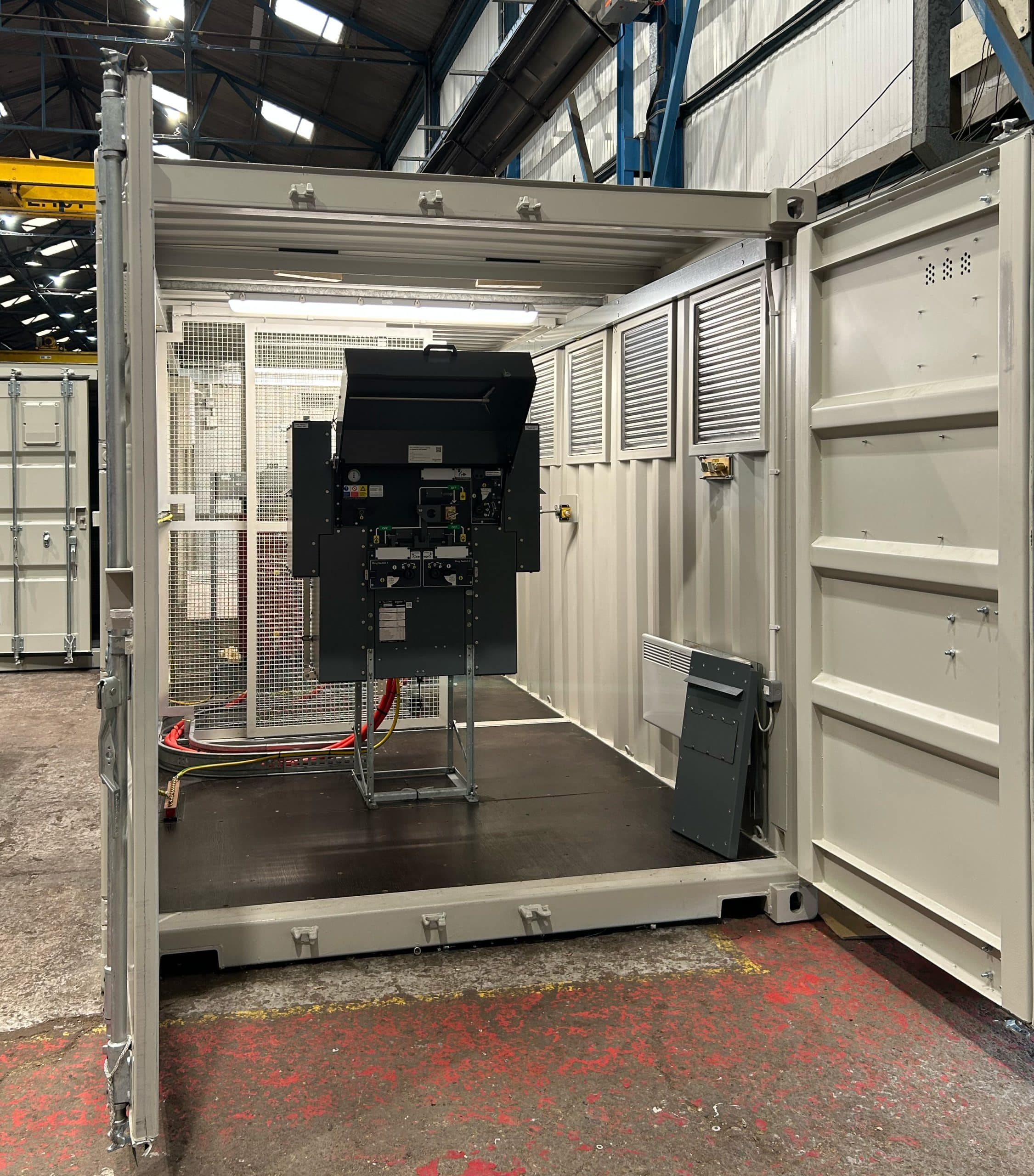

Containerised substations inside the Bowers factory

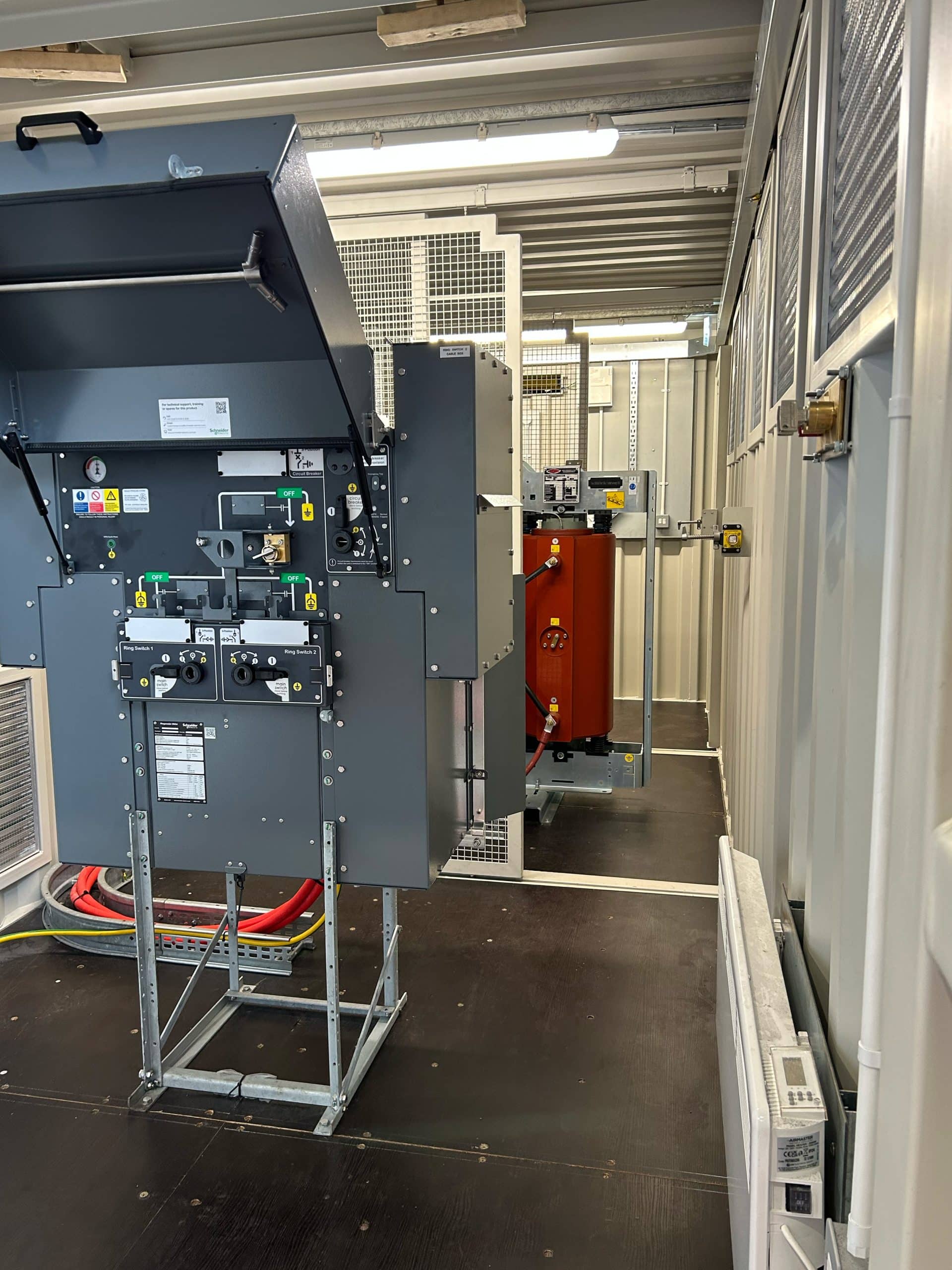

Bowers supplies containerised substations, utilising either new or refurbished modified containers, with HV & LV switchgear and transformer fitted integrally.

Containers are offered as standard or bespoke packages to suit the client’s requirements. Containerised substations are perfect for customers who need portability and flexibility when it comes to using their substations. They are suitable for temporary supply or if supply is needed in different areas of the site.

Enquire about your custom project arrow_right_alt

The containers are fully equipped and assembled prior to delivery, allowing for minimal site and civil works.

Our typical containerised substations package compromises of an ISO 20 or 40-foot new or refurbished shipping container modified to the Bowers Package Substation specification.

Build your package here arrow_right_alt

Bowers package substation specification includes the following:

check
Wall mounted distribution board for lighting and general supplies.
check
Overhead fluorescent strip lights complete with light switch.
check
Access door at switchboard end with push bolt release.
check
Mesh fence at front end of sub-station with mesh door access.
check
Mesh fence with door access segregating HV & LV sides.
check
Provision for cable access for 11kV cable.
check
Provision for cable access out of container for LV panel.
check
Internal earth bar and danger signs, “electricity at work” poster.

Additional options include but not restricted to:

  • 30V DC wall-mounted tripping unit
  • Thermostatic wall-mounted heaters
  • Air conditioning
  • Internal battery backup emergency lighting units
  • Extracting cooler fans at the front and rear of the container, complete with speed control, thermostat, and gravity shutters
  • External flood light with ‘walk up’ sensor
  • Floor boarding with ¾” ply board, luminous internal break-out push handle for access doors
Contact our team for a bespoke quotation arrow_right_alt

We are able to offer bespoke build package substation designs.

The unit pictured below is one of 10 bespoke built substations for a major overseas oil company including Transformer and Switchgear on a mounted base with a sun canopy.
